Dec 29, '09 3:08 PM
by bram for everyone

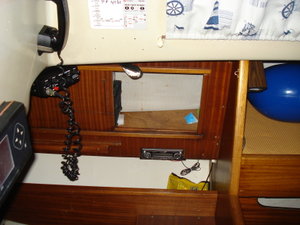

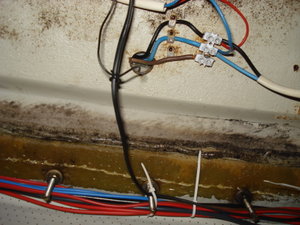

I posted this a few weeks ago and was requested to enclose some photos. I have a close up of the hole where the water is coming from, as well as the location in the boat. I hope this clarifies it.

Looking forward to your reactions

The original message is below

Dear Ballad-exchange members

For about a year now, my Ballad #173 has a leakage through the wire hole in the port cupboard above the navigation unit. Obviously the first thing to check and change was the genua rail, which is in this area. This was dry and was fitted back properly. After that I checked and filled all holes of the rain cover as well as the top fitting above the sliding door. I also checked the windows with a bucket, but these seem fine.

The problem with these kind of leaks that it can leak in the front, but due to the sandwich system it comes out a complete different spot. Does anyone have similar experiences and can advise me where I should look next?

Your help will be appreciated.

Bram

Tags: albin ballad, hull and deck

Prev: Ballad trailer specs wanted (please),
Next: No power to starter switch

3 CommentsChronological Reverse Threaded

pleiades2 wrote on Dec 29, '09

Bram,
I had a similar problem on the other side in my galley cabinet. It turned out to be leaking through the pipe in the foredeck where the anchor line goes. I re-sealed this place with goop and the galley has been dry since.

Tony Allport
Pleiades #191

basinet wrote on Dec 29, '09

Bram,

Had something similar, turned out to be the genoa track. Built up a dam with duct tape to hold enough water to seep. water from a hose did not work. Also what has worked well for me is using vegetable dye in the water, again with a dam, applied at possible sources. With the dye you don't have watch it for hours. Even a day later the dye is evident.
Am in the process of tracking one in the front O/H forward light.

Regards,
Dan

patentnick wrote on Jan 5, '10

Hi Bram:

Water usually finds its way through deck fittings that have not been bedded properly. (This had caused delamination in my boat which I fixed several years back by drilling the top layer of the deck and injecting epoxy resin.) Removing and re-bedding the hardware--preferably with epoxy plugs--is probably the best way to solve your problem because what may not be leaking now will leak at some point in the future. Bedding compound doesn't last forever. Since your problem manifests itself close to the wiring, it'd be wise to replace the chocolate blocks with proper buss bars that accept ring terminals. Unfortunately, most factory wiring was substandard in the 70s. Fortunately, it's not too difficult to upgrade it.

Regards,
Nicholas
